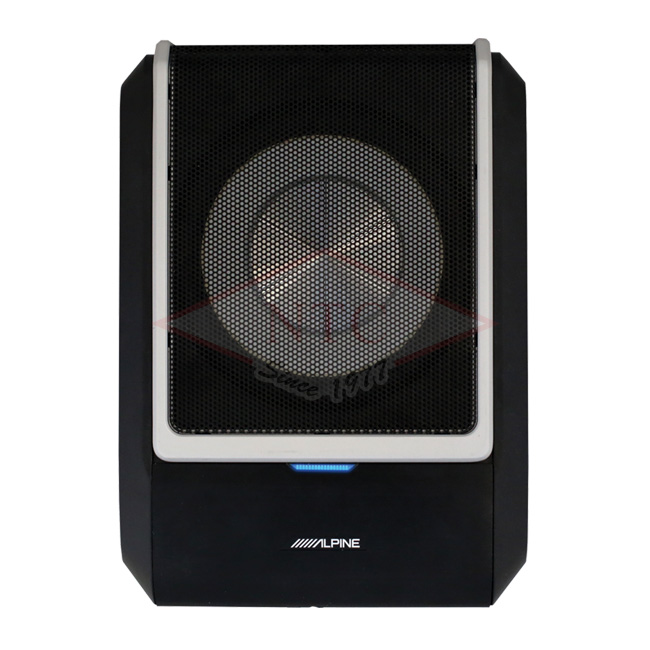

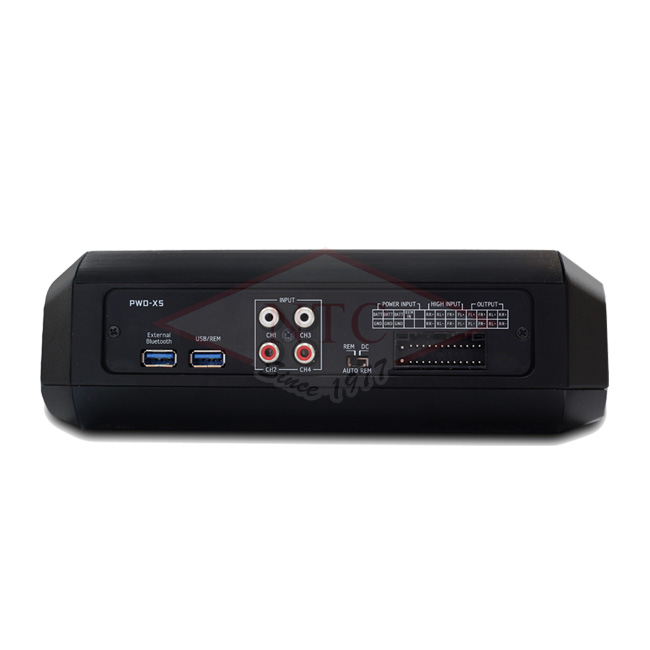

Achieving a perfectly integrated, high-performance car audio installation with only one device is now possible with the new Alpine PWD-X5.

This very unique sound system upgrade product includes a high-performance Digital Sound Processor (DSP), 4-channel amplifier for your front and rear door speakers, as well as an ultra-flat active subwoofer. The small footprint allows the PWD-X5 to be easily installed inside the car’s cabin to enjoy a nice bass upgrade. Connect either OEM radios via high-power speaker level inputs or aftermarket radio via RCA inputs, and control the system through the wired remote control and the convenient smartphone app.

This product is perfect for customers that look for a big improvement of their car’s sound quality, without installing many different devices and routing cables all across their car. The PWD-X5 comes with a full wiring kit including high-quality power cables (4.5 meters) with main fuse.

- All-in-one sound upgrade
- Compact installation
- Extensive sound tuning functions
- Wide connectivity options
- Wired Remote Control
- Bluetooth Audio Streaming
- Get the Smartphone App

TECHNICAL SPECIFICATIONS
Power output: Rated power: 25W*4+165W; peak power: 50W*4+240W
Signal-to-noise ratio: ≥80dB
Bass boost: -12dB~+12dB
Frequency response: 20Hz~20KHz
Input impedance: Low-level input: 20KΩ; high-level input: 100Ω
Phase selection: 0°/180°

FUNTIONAL PARAMETERS
Type of input signals: 4-channel high-level, 4-channel stereophonic low-level, Bluetooth
Output position: 4-channel amplifier output (4Ω 25W*4)
Output signal gain:
Master volume: 0~35;
Subwoofer volume: 0~15
Filter slope:
CH1~CH4 6 dB/Oct or 12dB/Oct
CH5 6/12/18/24dB/Oct
Q value: 0.404~28.85
Delay: 0.000~5.4ms/0.000~187cm
PreSets: 15 presets selectable

Net weight: 5.35kg
Measurements: 350mm (L) *245mm (W) *80mm (H)
