Description
_
1. IF WANT HANDPHONE TUNING, MUST BUY C1 CONTROLLER

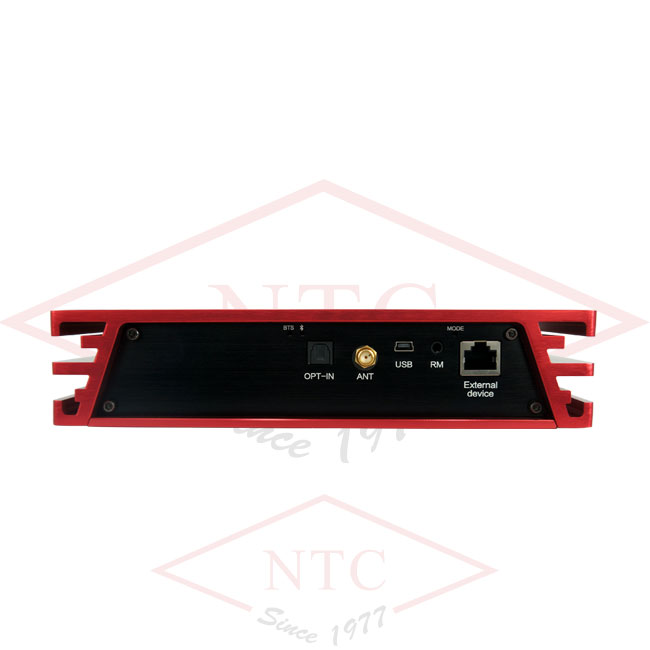

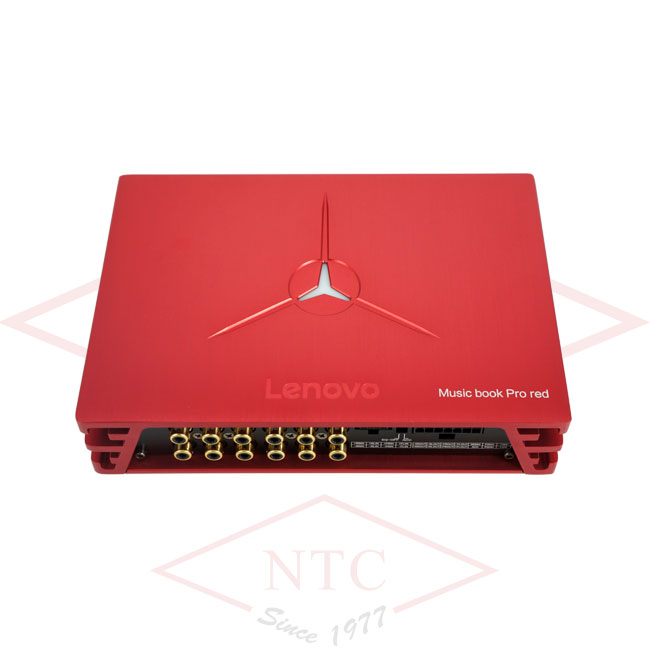

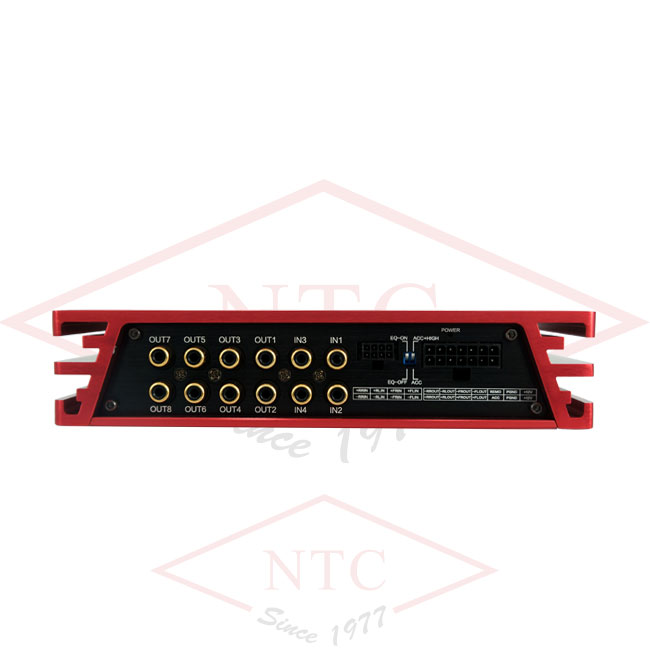

LENOVO DSP Music Book Pro
SMART CAR DSP POWER AMPLIFIER
USB DECODING AND LOSSLESS PLAYBACK HIGH-DEFINITION DIGITAL TRANSMISSION
HIGHER VOLTAGE | MORE POWER | ADVANCED INPUT WIRING HARNESS | BETTER DRIVE SPEAKER
> STPA003 AMPLIFIER CHIP FROM (US) ST COMPANY
> NE5532 INTEGRATED CIRCUIT FROM (US) TEXAS INSTRUMENTS
> WM8786 DAC CHIP FROM (UK) WOLFSON
> ADAU1452DSP FROM (US) ANALOG DEVICES
> CSR8675 BLUETOOTH MASTER CHIP FROM (US)
> JAPANESE CHEMICAL CAPACITORS AND GERMAN RED WEIMAR CAPACITORS
> BLUETOOTH 5.0 VERSION SUPPORT APTX-HD HIGH-DEFINITION BLUETOOTH FORMAT
> HIGH PRECISION 31-BAND EQ TUNING
> 6 CHANNELS INDEPENDENT ADJUSTMENT FUNCTION
> MOBILE PHONE AND COMPUTER TUNING
Product : MUSIC BOOK PRO ( RED )
Power amplifier IC : STPA003
Op Amp IC : LM4562
ADI processor : USA ADI ADAU1452 ( Dual-core 64Bit /296MHz )
DSP processor : UK WOLFSON / WM8786
Audio capacitor : German Red Weimar Film Capacitors / Japanese Chemical Electrolytic Capacitors
Immersion gold process PC board : SUPPORT
Aviation grade aluminum alloy : SUPPORT
Phone audio decoding : SUPPORT
Phone/computer tuning : SUPPORT ( optional / ASK US )
Operating voltage : DC 10.5V - 15V
Bluetooth : USA Qualcomm 5.0HD
High level input : 4 inputs ( switchable )
Low level input : 4 inputs
Low level output : 8 channel (RCA port output) 4V
Contrast switch : SUPPORT
Built-in 6 sound effects : SUPPORT
EQ adjustment : 31 Band 8 Channel
Output conversion : 2Ω / 4Ω
Output Power : RMS 4 X 40W @ 4Ω / 4 X 70W @ 2Ω . MAX 4 X 80W @ 4Ω / 4 X 140W @ 2Ω
Distortion : 0.01%
Signal to noise ratio : 116dB
External HD Bluetooth : X
Two-way Karaoke : SUPPORT
Additional controller : SUPPORT
Optical input : SUPPORT
Coaxial input : X
Actual Product Dimension : 214 x 148 x 47 mm
